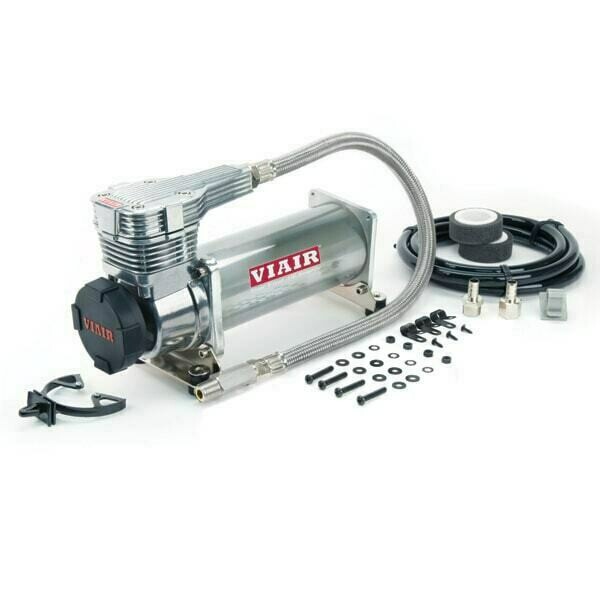

Viair 485C Compressor

Store/AIR SUSPENSION COMPONENTS/Air Compressors

Product Details

VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.

The 485C features newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black finishes, and comes equipped with either a stainless steel or a Black sleeved stainless steel leader hose and an inline check valve.

FEATURES
– Thermal Overload Protector
– 485C (Platinum or Stealth Black) Compressor
– Air Filter Assembly
– VIAIR Removable Filter Cover
– Replacement Air Filter Elements
– Remote Mount Filter Assembly
– Leader Hose Clip
– Air Line Clip with Included Hardware
– Mounting Hardware
– Stainless Steel Braided Leader Hose with Inline Check Valve
– Air Line (For Remote Mount Filter Installation)

SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 200 PSI
– Max. Working Pressure: 200 PSI
– Max. Air Tank Size: 5.0 Gallon
– Combined Max. Amp Draw: 23 Amps
– Ingress Protection Rating: IP67
– Dimensions: 10.63″L x 4.1″W x 6.44″H

FILL RATES

2.5 GALLON TANK	FILL RATE
0 to 200 PSI	4 min. 50 sec. (± 10 sec.)
165 to 200 PSI	1 min. 15 sec. (± 05 sec.)
5.0 GALLON TANK	FILL RATE
0 to 200 PSI	9 min. 45 sec. (± 15 sec.)
165 to 200 PSI	2 min. 25 sec. (± 05 sec.)
