Viair 480C Dual Pack
SKU 48012
$485.95
Color
Please choose
In stock
1
Save this product for later
Viair 480C Dual Pack
Product Details

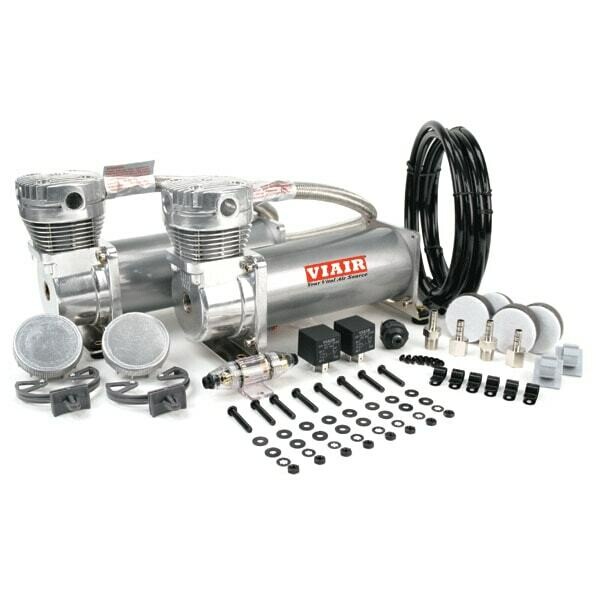

Providing 200PSI and a 100% duty cycle, VIAIR’s 480C Dual Performance Value Pack is an ideal air source solution for any air suspension kit, industrial applications, air horns, or off-road pneumatic needs. Each Dual Pack includes two VIAIR 480C Pewter, Chrome, or Stealth Black air compressors, two heavy duty 40-amp relays, a 165 PSI cut-on, 200 PSI cut-off pressure switch, and remote mount filter assemblies with mounting hardware.
| FEATURES |
|---|
| – (2) 480C (Pewter, Chrome, or Stealth Black) Air Compressors w/Thermal Overload Protectors |
| – (2) Air Filter Assemblies |
| – (2) Remote Mount Brackets |
| – (2) Sets of Remote Mount Fittings |
| – (2) Sets of Spare Air Filter Elements |
| – (2) Leader Hose Clips |
| – (6) Air Line Clips with Included Hardware |
| – (8) Sets of Nuts, Bolts, Washers and Lock Washers |
| – (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse) |
| – (2) 40-Amp Relays |
| – (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off) |
| – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve |
| – Air Line (For Remote Mount Filter Installation) |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI) |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 10.0 Gallon |
| – Combined Max. Amp Draw: 44 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 10.87″L x 4.2″W x 6.75″H (Each Unit) |
| – Net Weight: 22.10 lbs. |
FILL RATES
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 2 min. 22 sec. (± 10 sec.) |
| 165 to 200 PSI | 38 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 5 min. 02 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 25 sec. (± 05 sec.) |
| 10.0 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 10 min. 30 sec. (± 15 sec.) |
| 165 to 200 PSI | 3 min. 10 sec. (± 10 sec.) |
