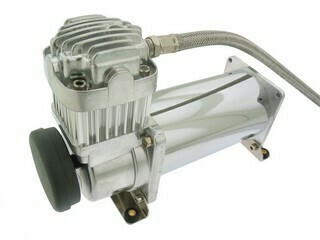

380C is a truly-rated continuous duty, 12-volt, 200 PSI compressor. It is capable of filling a 5.0-gallon tank from 165 PSI to 200 PSI in 3 1/2 minutes consistently, while never pulling more than 23 amps of power (@ 13.8 volts). Features include a standard 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring.

FEATURES
– Thermal Overload Protector
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Stainless Steel Braided Leader Hose
– Air Line for Remote Mount Air Filter
– Remote Mount Air Filter Assembly
– (2) Replacement Air Filter Elements
– Installation Instructions

SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
– Max. Working Pressure: 200 PSI
– Max. Air Tank Size: 5.0 Gallon
– Max. 12V Amp Draw: 23 Amps
– Ingress Protection Rating: IP67
– Dimensions: 9″L x 4″W x 6.75″H

FILL RATES

2.5 GALLON TANK	FILL RATE
0 to 145 PSI	3 min. 30 sec. (± 10 sec.)
110 to 145 PSI	1 min. 10 sec. (± 05 sec.)
0 to 200 PSI	6 min. 05 sec. (± 10 sec.)
165 to 200 PSI	1 min. 40 sec. (± 05 sec.)
5.0 GALLON TANK	FILL RATE
0 to 145 PSI	7 min. 20 sec. (± 10 sec.)
110 to 145 PSI	2 min. 25 sec. (± 05 sec.)
0 to 200 PSI	13 min. 25 sec. (± 15 sec.)
165 to 200 PSI	3 min. 39 sec. (± 10 sec.)
