Viair 380C Compressor Dual Pack

Store/AIR SUSPENSION COMPONENTS/Air Compressors

Product Details

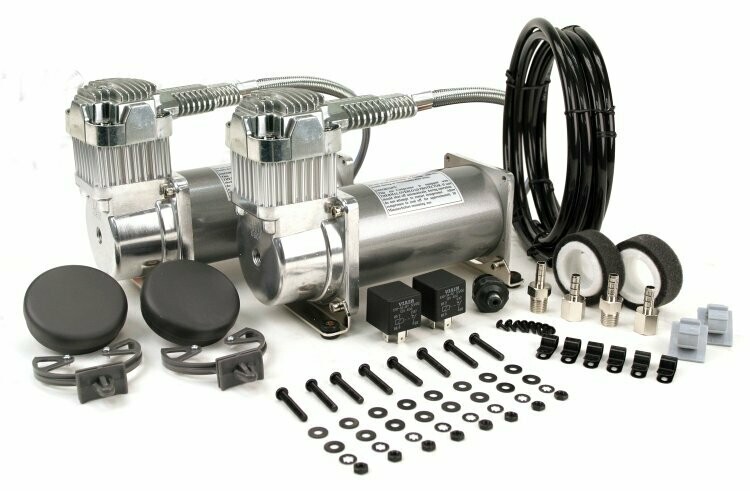

The VIAIR 380C Dual Performance Value Pack is ideal for air suspension systems capable of providing a maximum of 200 PSI and a 100% duty cycle. The kit features two 12-volt Pewter, Chrome, or Stealth Black 380C air compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off heavy-duty pressure switch. Each 380C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.

FEATURES
– (2) 380C (Chrome, Pewter, or Stealth Black) Air Compressors w/Thermal Overload Protectors
– (2) Air Filter Assemblies
– (2) Remote Mount Brackets
– (2) Sets of Remote Mount Fittings
– (2) Sets of Spare Air Filter Elements
– (2) Leader Hose Clips
– (6) Air Line Clips with Included Hardware
– (8) Sets of Nuts, Bolts, Washers and Lock Washers
– (2) 40-Amp Relays
– (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
– Air Line (For Remote Mount Filter Installation)

SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
– Max. Working Pressure: 200 PSI
– Max. Air Tank Size: 10.0 Gallon
– Combined Max. Amp Draw: 44 Amps
– Ingress Protection Rating: IP67
– Dimensions: 9″L x 4″W x 6.75″H (Each Unit)

FILL RATES

2.5 GALLON TANK	FILL RATE
0 to 200 PSI	3 min. 13 sec. (± 10 sec.)
165 to 200 PSI	53 sec. (± 05 sec.)
5.0 GALLON TANK	FILL RATE
0 to 200 PSI	7 min. 11 sec. (± 15 sec.)
165 to 200 PSI	2 min. 06 sec. (± 10 sec.)
