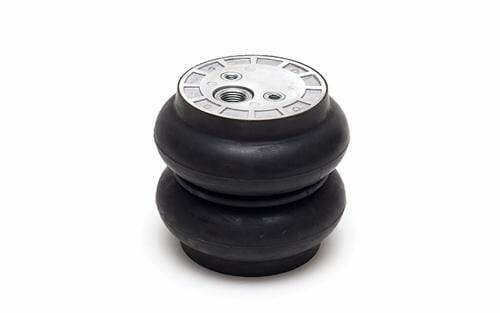

SLAM SPECIALTIES air springs are technologically advanced in all areas of design and performance. Bolt pattern compatible with Firestone and other air springs

• Rated at much higher pressures - critical for front end installations on heavy V8 vehicles
• Non-ballooning, stiffer bellows ensure that more force is exerted through the centerline of the airspring to lift the vehicle straight up - this is an important feature of bellow design as the front control arms are at a "mechanically disadvantaged point" when the vehicle is lowered.
• Superior end plate design to all other airsprings making it virtually impossible for separation to occur even when unrestrained at maximum pressure!
• Unique internal bump stop prevents rubber bellow damage from constantly deflating airspring to zero pressure (see image below)

Capacity per airspring @ 110psi = 2800lbs

• 6″ diameter bag
• Rated @ 200psi
• Minimum height = 2.9"
• Installed height approx = 6.0"
• Maximum height = 10.0"
• Single 1/2" port
• Internal bumpstops
• Non-ballooning design
• (2) 3/8″-16 Mounting Holes Top
• (3) 3/8″-16 Mounting Holes Bottom
• Chemically bonded aluminum/zinc end closure plates
• Replaces: 255c/2500
• Sold Individually
• Designed & Manufactured by Slam Specialties
• Made in the USA
