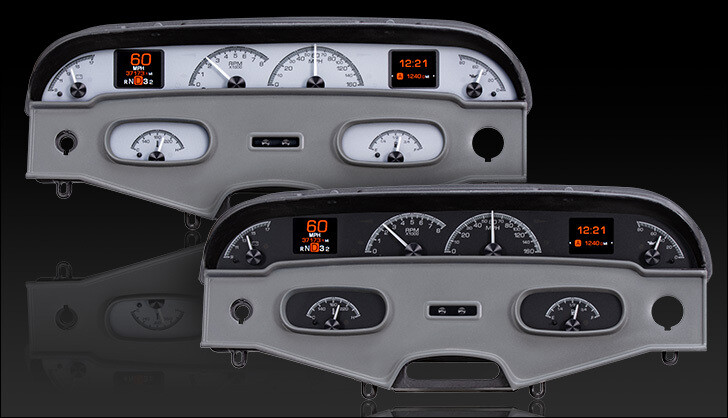

As the grown-up brother to the tri-fives, the all-new 1958 models were the first of the new X-frame design. The dashboard received a through update, and Dakota Digital has just what you need to bring yours up to current standards. Twin TFT message centers provide full-color, real-time status updates on the drivetrain, from a 283 to LSA and everything in between. Requires your stock instrument housing and front bezel trim.

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.

*Bezel not included, shown for visual/presentation purposes.

System uses OEM or reproduction style bezel.

ADD ONS

GSS-3000

Pair your gauge housing with the newest generation of gear sending unit from Dakota Digital. The GSS-3000 accommodates automatic transmissions with 2- 4 forward gears, plus park, reverse and neutral.

DIM1

Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.

SEN-06-1

Dakota Digital instrument systems are designed to utilize a stock or aftermarket fuel level sensor. If a universal or replacement sensor is desired, the SEN-06-1 is a great choice.

BIM-01-2-OBDII / CAN Interface

he BIM-01-2 OBD-II (J1850/CAN) Interface connects directly to the ECM diagnostic port to extract engine and transmission data and supply it to the VFD/ VHX/ HDX/ RTX instrument, making installation a breeze.

BIM-17-2

The Dakota Digital BIM-17-2 makes it easy to add compass and outside air temperature information to your VFD/ VHX/HDX/ RTX instrument system. Readouts are visible in the instrument system's message centers; sending units and mounting hardware included.

****All VFD Instrument systems and individual digital gauges are built to order and have an estimated 4-6 weeks build time before shipment. Many VHX and VLK/ VLC, HDX and HLC, RTX and RLC Instrument systems are built to order and have an estimated 18-20 week build time before shipment. This is an estimated time-frame and is not a guarantee that items will ship within the above time frame due to unexpected delays. Backorders may not be known at time of order; if a backorder arises we will attempt to contact you as soon as any issues are known.

If an extended shipping delay is known, an email will be sent to you stating the estimated date of completion.
