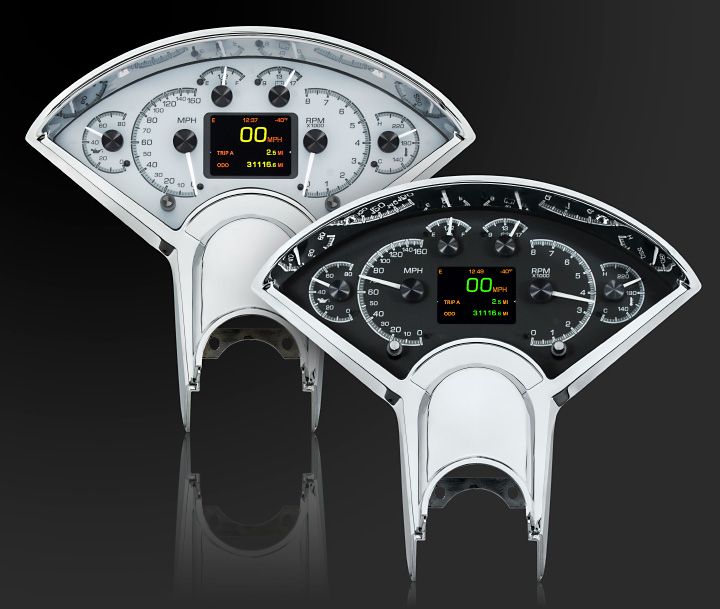

*Bezel not included, shown for visual/presentation purposes.

System uses OEM or reproduction style bezel.

* Instrument system eliminates the stock automatic gear shift indicator immediately above steering column. To display gear position, add GSS-2000 Gear Shift Sensor (sold separately)

The star of our favorite movies, the '55 and '56 Chevy cars are among the most customized in history. As such, this was one of the first direct-fit applications offered by Dakota Digital, so it was only natural to create an HDX system for the icon. A large TFT display lets you expand upon the six analog gauge readings, all installing in to your stock or reproduction bezel; repop chrome pieces are available separately, as is the HLC clock. Not to be used alone, the HLC is the perfect complement to the bolt-in HDX system.

Available with your choice of black or silver gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.

Many VHX and VLK/ VLC, HDX and HLC, RTX and RLC Instrument systems are built to order and have an estimated 18-20 week build time before shipment. This is an estimated time-frame and is not a guarantee that items will ship within the above time frame due to unexpected delays. Backorders may not be known at time of order; if a backorder arises we will attempt to contact you as soon as any issues are known.

ADD ONS

---

---

GSS-3000

Pair your gauge housing with the newest generation of gear sending unit from Dakota Digital. The GSS-3000 accommodates automatic transmissions with 2- 4 forward gears, plus park, reverse and neutral.

DIM1

Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.

SEN-06-1

Dakota Digital instrument systems are designed to utilize a stock or aftermarket fuel level sensor. If a universal or replacement sensor is desired, the SEN-06-1 is a great choice.

---

he BIM-01-2 OBD-II (J1850/CAN) Interface connects directly to the ECM diagnostic port to extract engine and transmission data and supply it to the VFD/ VHX/ HDX/ RTX instrument, making installation a breeze.

BIM-17-2

The Dakota Digital BIM-17-2 makes it easy to add compass and outside air temperature information to your VFD/ VHX/HDX/ RTX instrument system. Readouts are visible in the instrument system's message centers; sending units and mounting hardware included.
